MAXIMUM POWER 61 HP
MAXIMUM SPEED 25 MPH
MAX. SPEED ON THE WATER 4 MPH
CAPACITY 2205 LB
GRADEABILITY 35°
CLEARANCE 22.8 IN

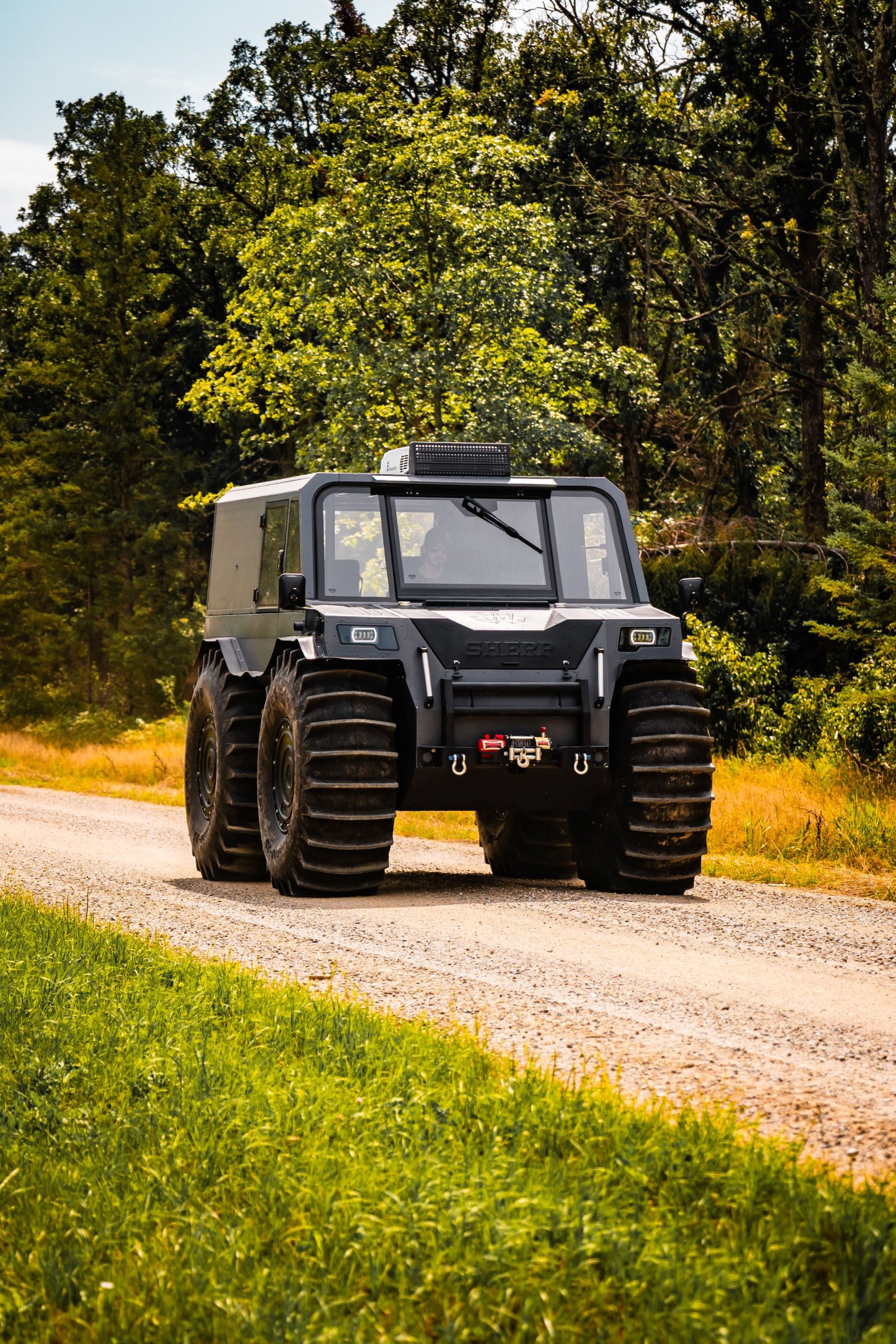

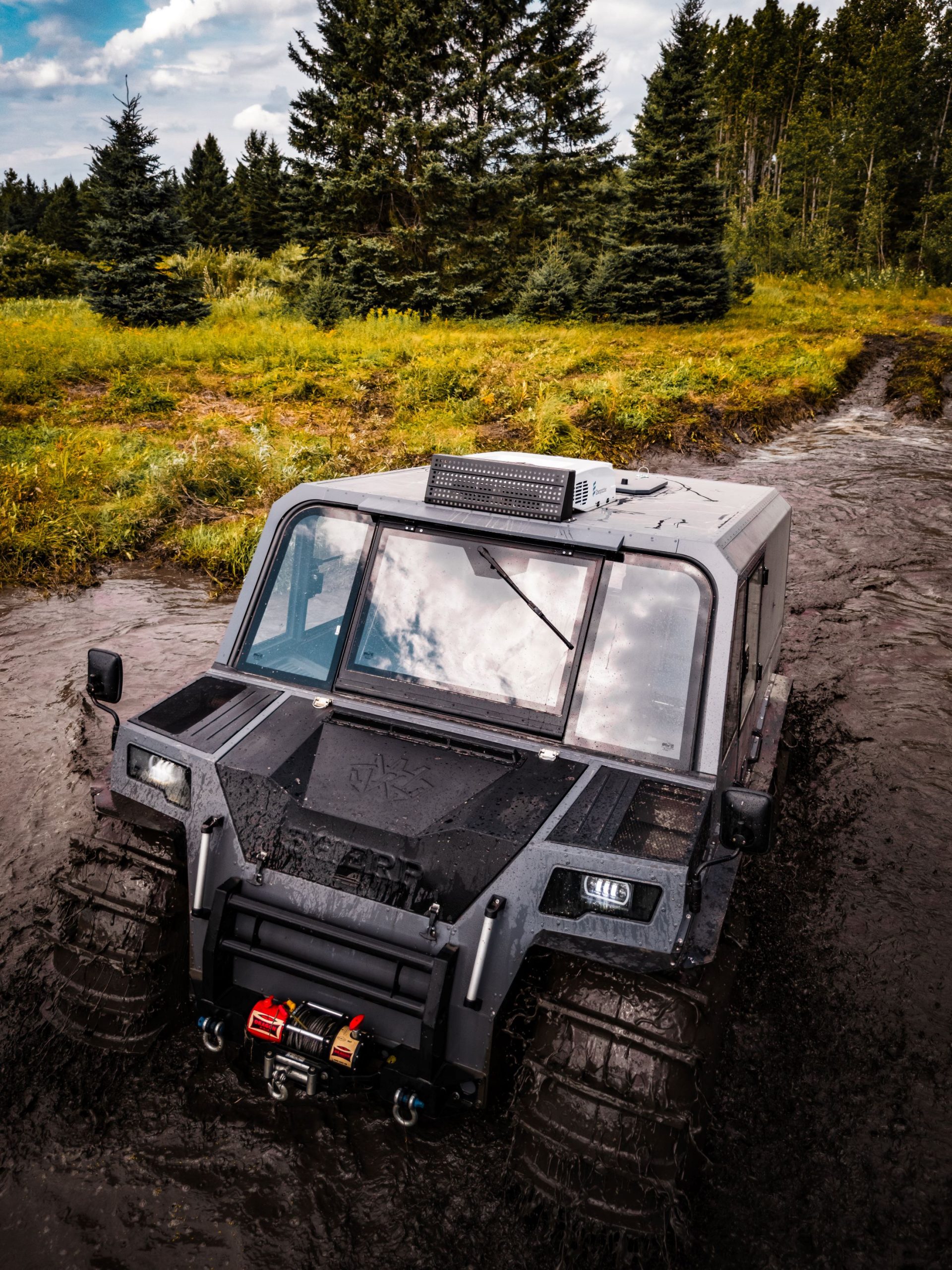

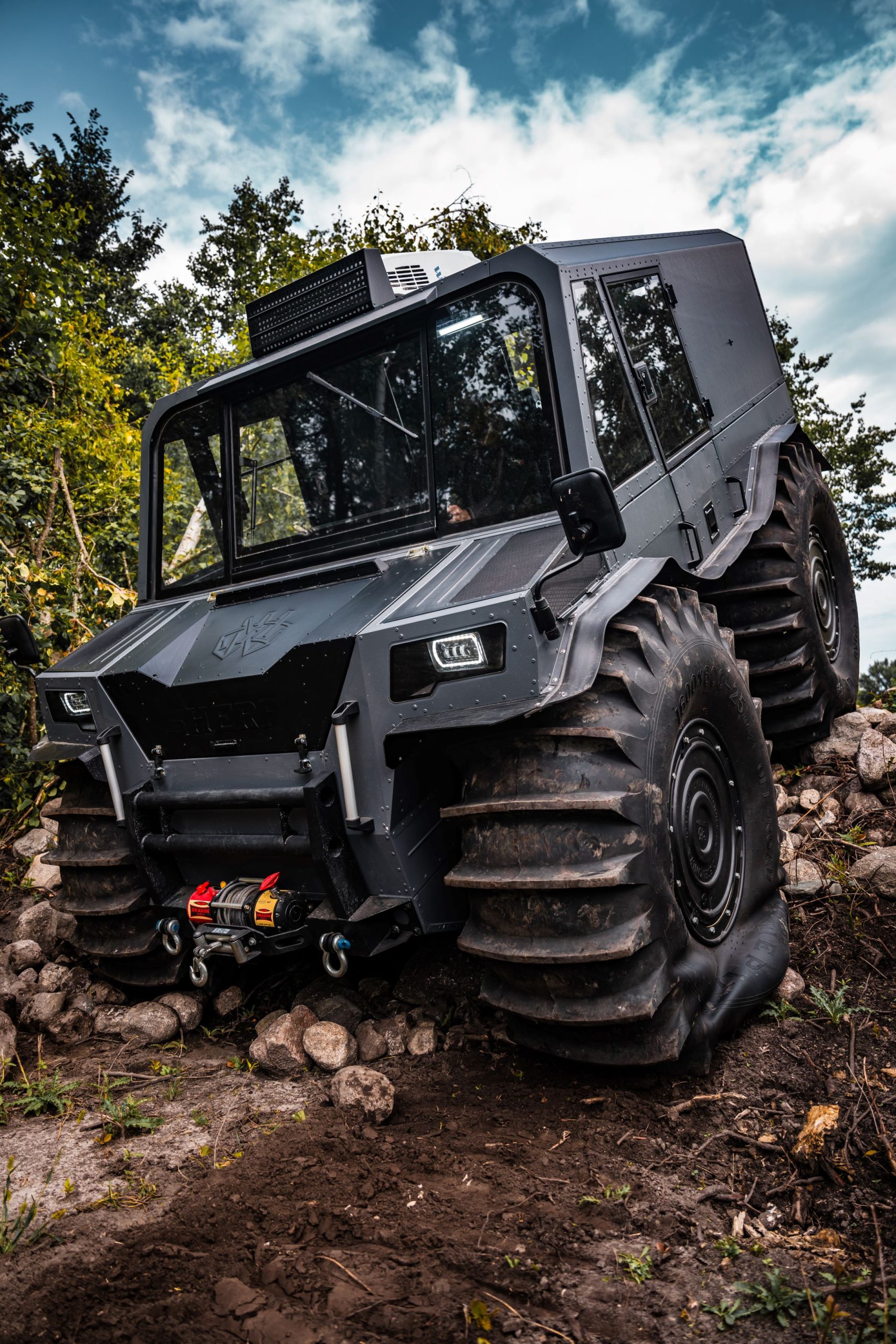

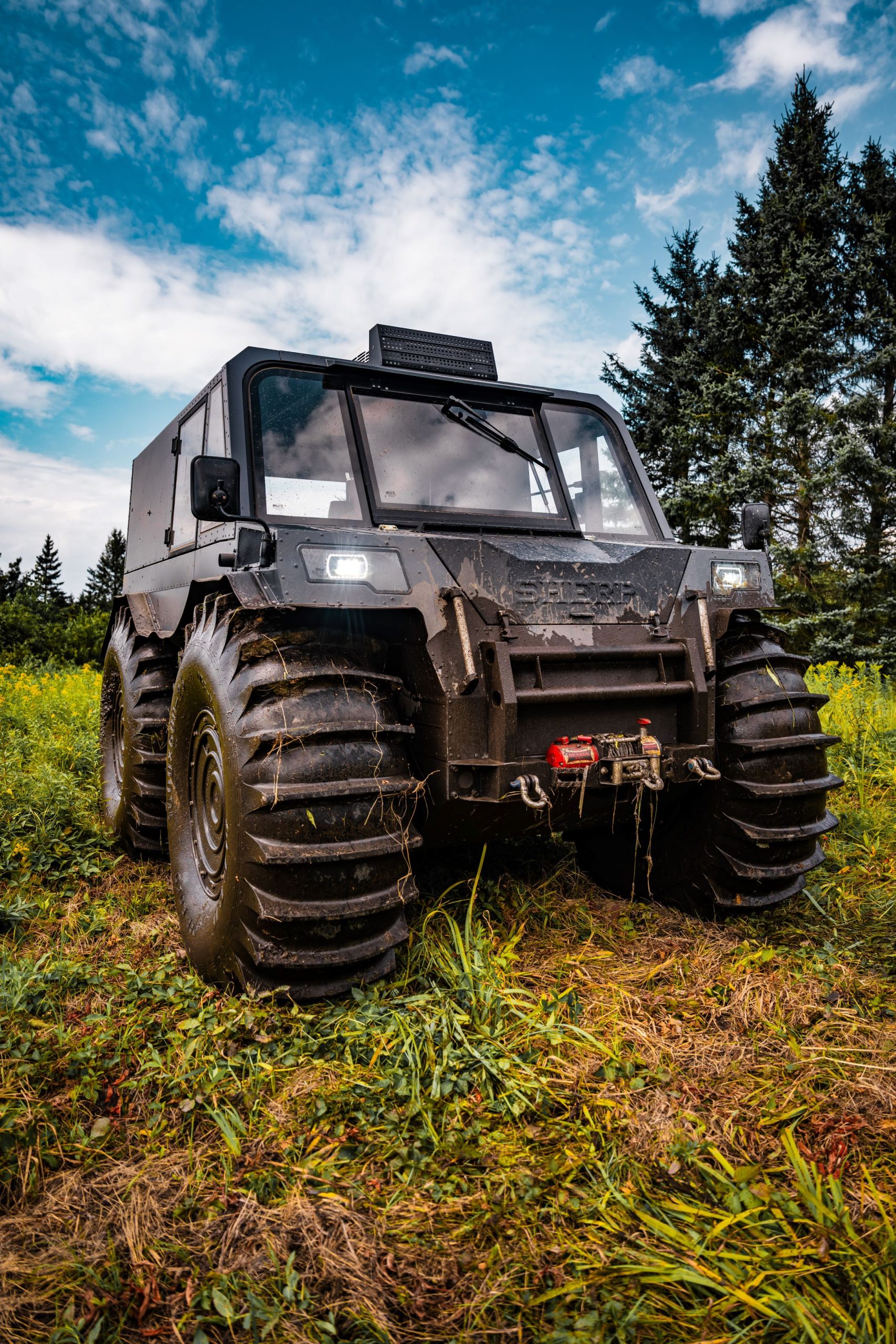

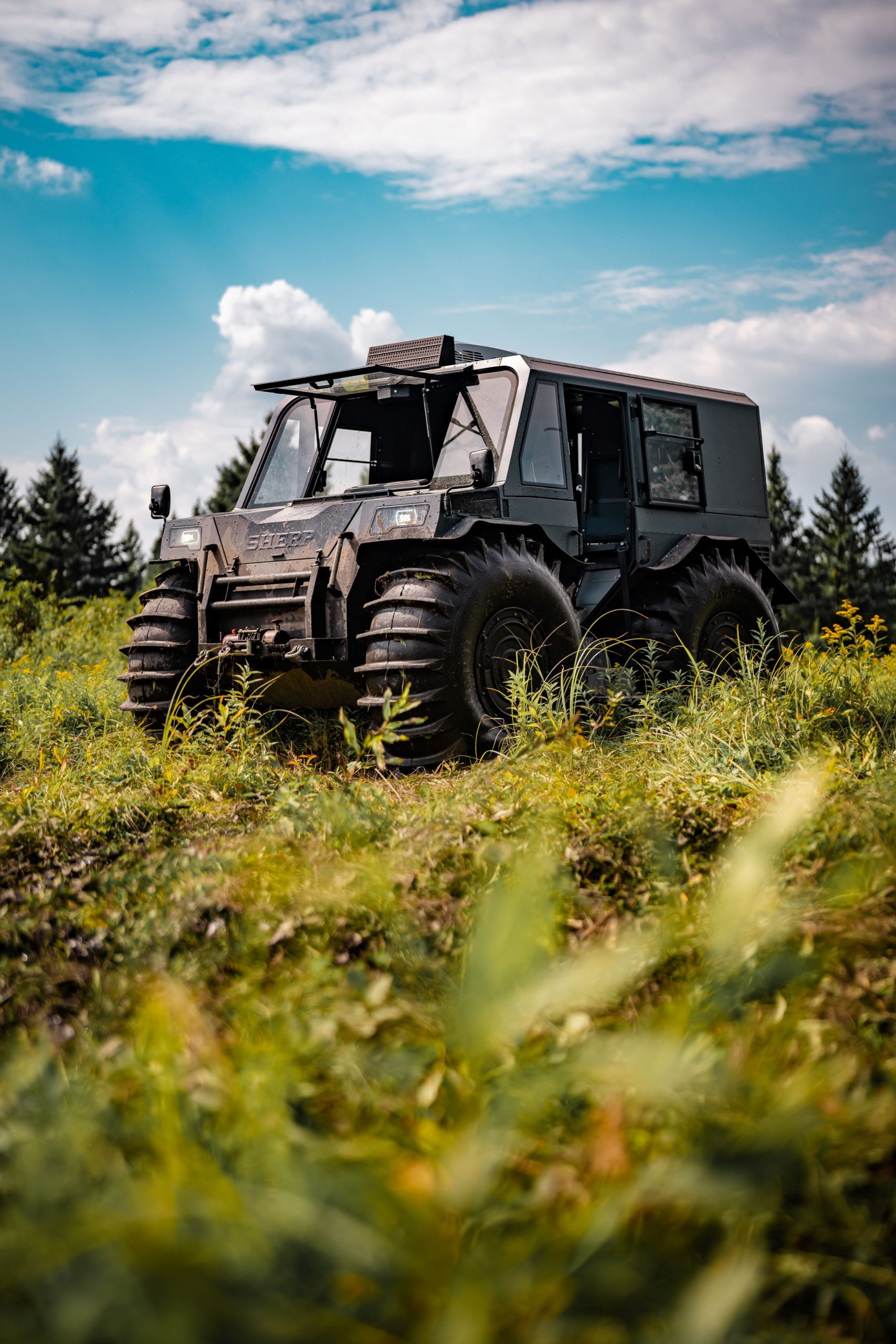

The SHERP Q brings a new driving experience to SHERP’s proven amphibious, extreme-terrain capability. With steering-wheel control, a 3-speed semi-automatic transmission, an updated driver interface, 61 HP turbo diesel, and onboard tire inflation, the Q combines intuitive operation and increased comfort with the capability SHERP is known for. With up to 2,205 lb of payload, seating for up to 7, 22.8 inches of ground clearance, and amphibious capability, the Q is ready for everything from demanding professional applications to backcountry exploration.
| length, in | 156.3 |
| width, in | 101.4 |
| height, in | 102.5 (110.4 with A/C) |
| Body | aluminium |
| Dry weight, Lb | 4630 |
| Fuel | diesel |
| Engine | 1.8 Hyundai Turbo Diesel |
| Max. Power, hp | 61 |
| Transmission | Semi-automatic, 3-speed |
| Suspension | pneumatic circulating |
| Parking brake system | Electric |
| Clearance, in | 22.8 |
| Load capacity, Lb | 2205 |
| Maximum (in top gear), mph | 25 |
| Minimum (in low gear), mph | 1 |
| on water, mph | 4 |
| Type of tires | tubeless, extra low pressure |
| Tire size | 63 x 24-25 |
| Passable surfaces | any |
| Hourly fuel consumption (depending on the off-road conditions), gal/h | 1.3-2.1 |
| Fuel tank capacity, gal | 19.8 |
| Capacity of extra fuel cans, gal | 15.3×4 = 61.2 gal |
| Height of the obstacle in the form of a vertical step, ft | 3.3 |
| Hill climbing capacity | 35° |
| Maintenance frequency, running hours | 50 |
ENGINE – 61hp diesel eco-friendly engine provides high torque and fuel efficiency while providing optimum performance with a low level of noise and vibration.
TRANSMISSION – Skid steering system with hydraulic assist for exceptional maneuverability turning within its own width on land or in water.
FINAL DRIVE – Enclosed gears & oil bath chains for maximum performance and superior reliability under extreme conditions.
SUSPENSION – Our patented suspension system (tires and wheels), are self-inflating for optimum traction and provide a smooth ride in any terrain.
TIRES – Unique tire tread provides propulsion in water, excellent traction on land and sure grip to climb onto ice from water.
SKID PLATE – Decol steel flat bottom chassis provides smooth finish from front to back with a 24″ (60 cm) ground clearance, handles large obstacles with ease.
CAB – Lightweight aluminum cab with advanced interior ergonomics including multi function digital gauge and fingertip controls all within easy reach.
ROPS – Integrated inside the cab is a ISO certified 3471-2009 and 5700-2008 Roll Over Protection Structure.
AMPHIBIOUS – A distinguishing characteristic of the Sherp is its fully amphibious sealed compact chassis combined with massive all-terrain tires.
WARRANTY – 1 Year or 1,000 operational hours Limited Warranty, strongest warranty in the industry.
